Cobot/Robot Transport Units

PrestonEastin - Separator

Cobots excel at high-mix, low-volume work, easing labor constraints and enabling rapid changeovers—yet their native reach can limit cell layouts and throughput.

Our transport units unlock new productivity by giving cobots linear mobility across multiple stations, larger pallets, and wider work envelopes without sacrificing the simplicity that makes cobots so attractive.

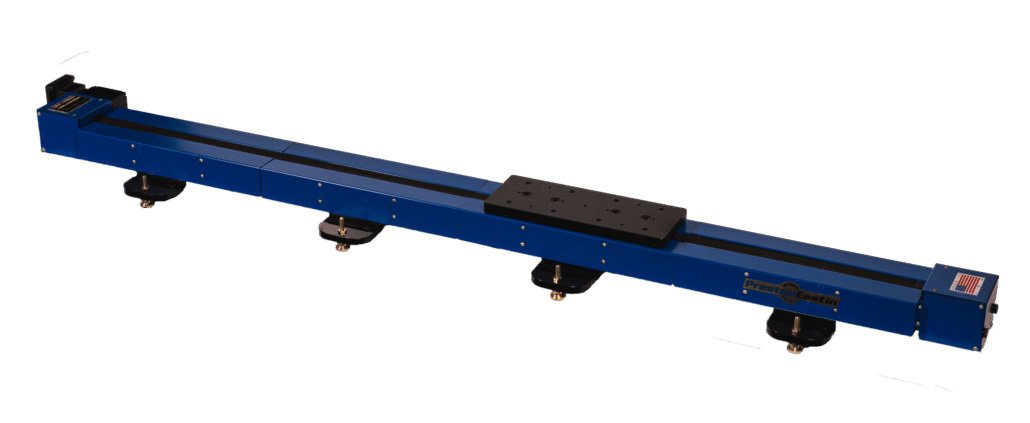

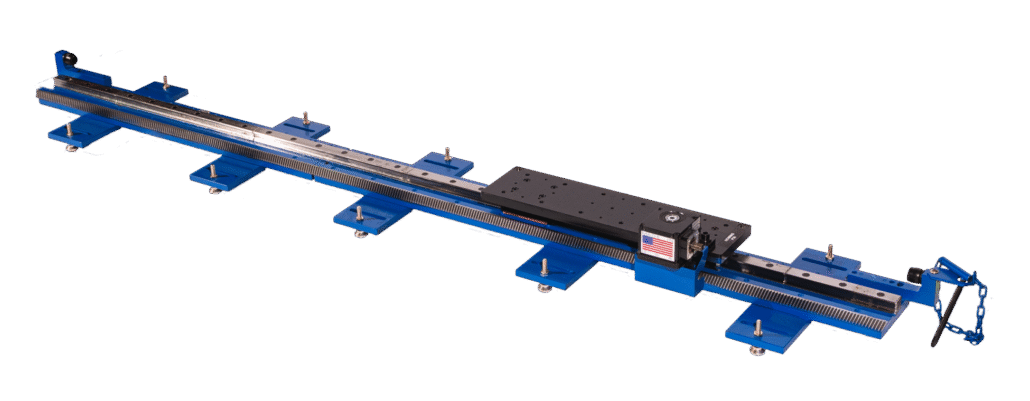

Extend your cobot or small robot’s reach with a low-profile, guarded linear axis built for reliability, precision, and easy integration. Available with a belt or rack and pinion drive.

BENEFITS

  • Expand your working envelope: Add up to 6 units (5,760 mm) of linear travel to your cobot/robot for larger workcells and more part locations.
  • Precision you can trust: ±0.03 mm repeatability supports tight-tolerance tasks, inspection moves, and repeatable pick-and-place.
  • Fast, efficient motion: Standard speed of 1.5 m/sec with 1 m/sec² accel/decel keeps throughput high without sacrificing accuracy.
  • Flexible integration: Vertical or horizontal servo orientation; gearbox mountable on left or right; belt or rack-and-pinion drive options; adapter plates available.
  • Built for light robot applications: Capacity up to 150 kg and 700 Nm torque under normal operation.

FEATURES

  • Capacity to 150 kg with 700 Nm torque under normal operation
  • Lengths up to 6U (5760mm) in 480 mm increments
  • Carriage 400 mm length x 152 mm width
  • Adapter plates available for customer equipment
  • Standard speed of 1.5 m/sec and accel/decel 1 m/sec²
  • Servo orientation: vertical or horizontal
  • Gearbox can mount on left or right end of track
  • Repeatability: +/- 0.03 mm
  • Perfect for cobot and light robot applications
